Revolution Silenced V2 AC Stratos

THE NEXT GENERATION OF SILENCED FANS

Engineered by Systemair to be lighter, quieter, and maintain all the advantages of the original Revolution fan. The sealed housing was developed as a new and novel solution to reduce the noise of the air flow.

Revolution Silenced V2 is the ultimate sound absorbing fan with a silent motors and double balanced blades. The powerful, aerodynamically optimised blades and guide vanes create fast, high pressure air flows, which can be noisy. Revolution Silenced V2’s housing incorporates a sound reducing foam which does not absorb moisture or dust and was specifically for ventilation systems.

Metal flanges are secured into the housing to form a seal. The fan, flanges and silencing tube seal into a light, sturdy, moulded outer body, which reduces the sound.

• The most efficient fan on the market, is now the quietest
• Outstanding performance and air flow
• Sealed housing to prevent leaks
• Hanging brackets for easy installation
• Extremely lightweight
• IEC cable attached
• Fully serviceable
• Maintenance free
• Made in Germany
• 2 year warranty

Specification:

Revolution Silenced V2 AC Stratos 150 - 6inch

• Flange size: 150mm
• Length: 720mm
• Max Air Flow: 420 m³/h
• Max Air Flow with Filter: 305 m³/h
• Pressure Drop with Filter: 59 Pa

Revolution Silenced V2 AC Stratos 200 - 8inch

• Flange size: 200mm
• Length: 760mm
• Max Air Flow: 956 m³/h
• Max Air Flow with Filter: 710 m³/h
• Pressure Drop with Filter: 123 Pa

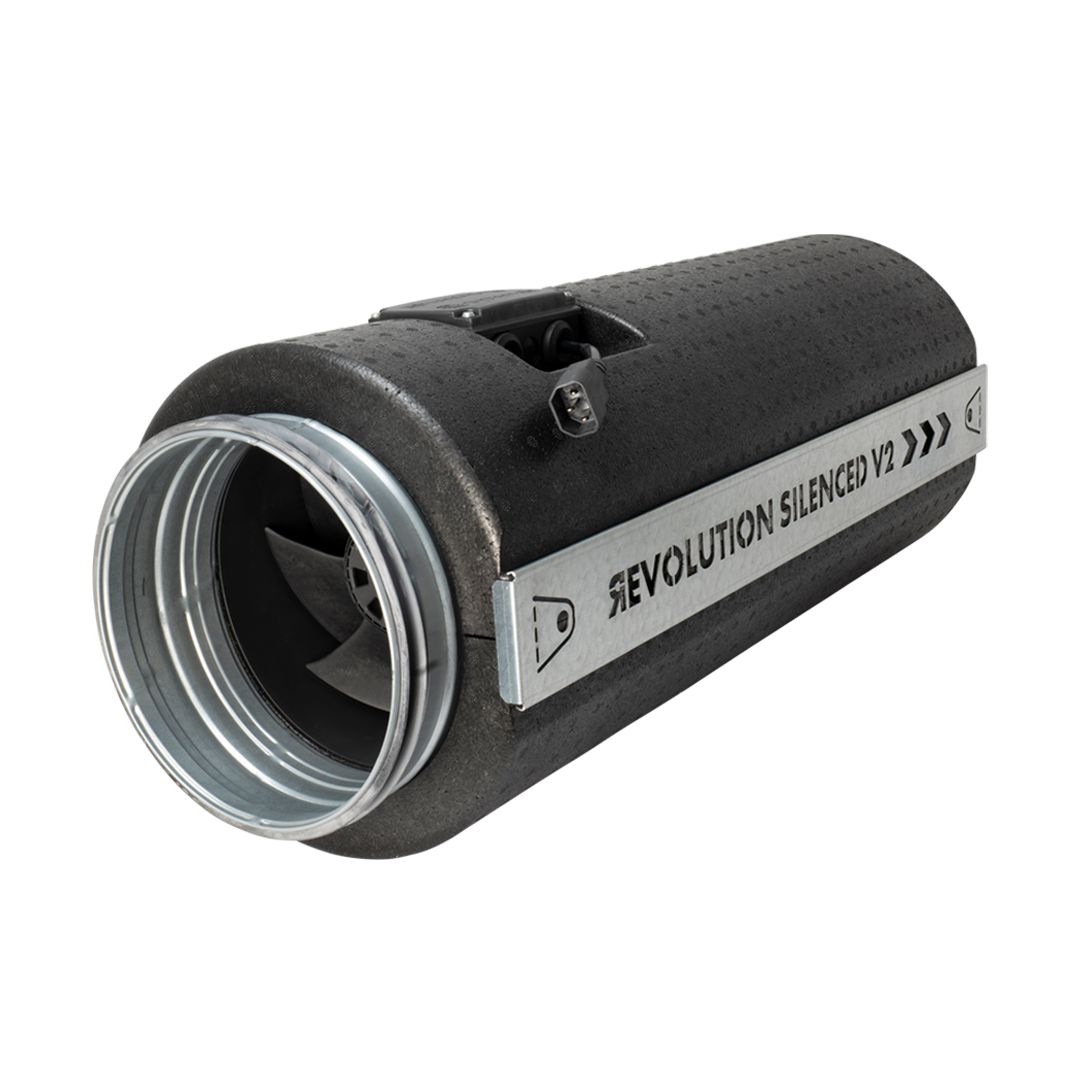

Revolution Silenced V2 AC Stratos 250 - 10inch

• Flange size: 250mm
• Length: 760mm
• Max Air Flow: 2039 m³/h
• Max Air Flow with Filter: 1625 m³/h
• Pressure Drop with Filter: 170 Pa
